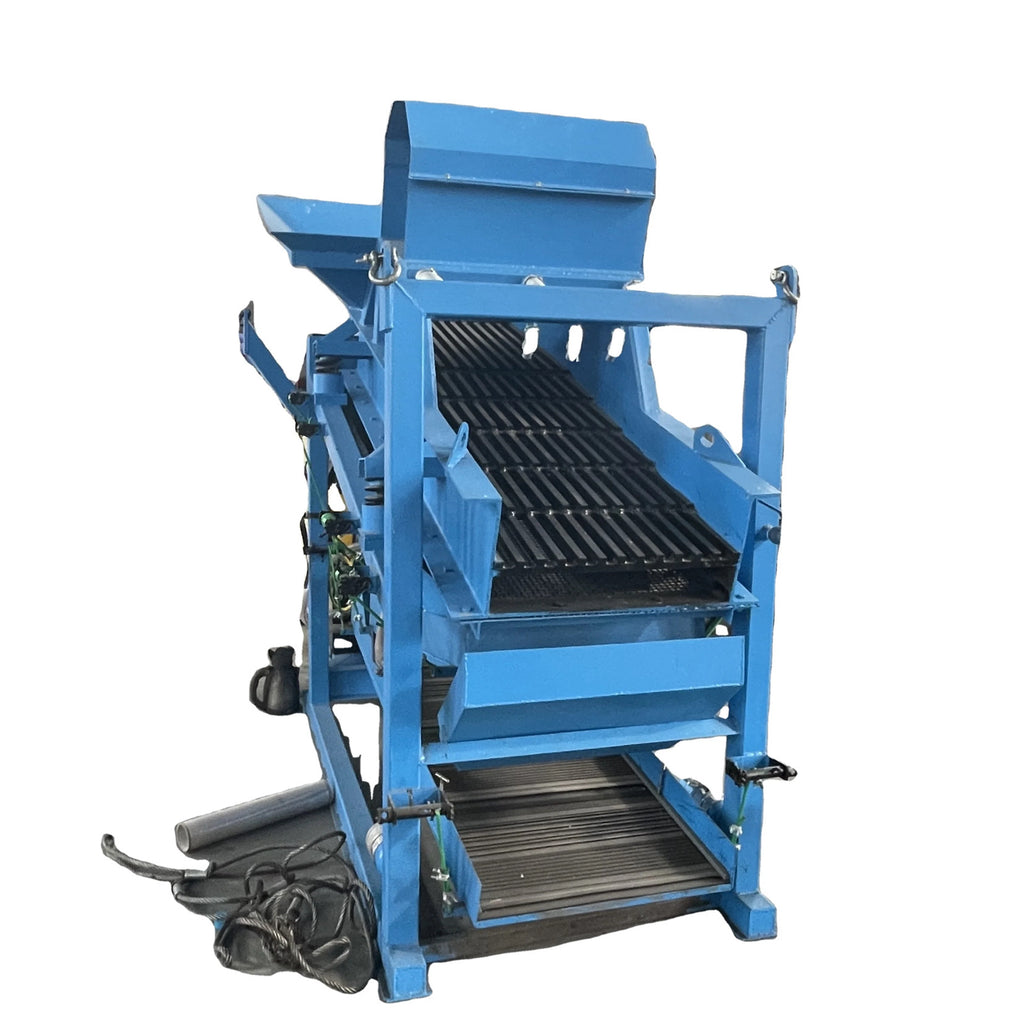

This compact mobile wash plant is designed for high gold recovery with minimum operator requirements.

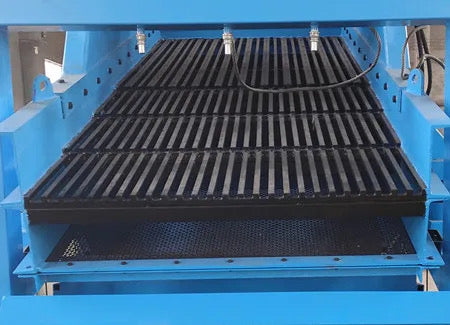

There is two layers of screening and washing of the material before hitting 2 layers of sluice mats.
Best suited for riverbeds, sand with medium to small stones. Not suited for clay.
Wash plant includes water pump with lay flat hose. Diesel motor with hydraulic pump for the vibrating screen. All you need is a water source and material to start mining.
These units are made to order. Generally ready 14 weeks from deposit.
Model- VWP50
Length- 2.96m
Width- 0.9m
Height- 2.2m
Weight- 1.2 tonne
Capacity- 50t/hr
Water volume- 110 cubic metres per hour
Water pump- 14hp diesel 4 inch
Main Engine- 9hp diesel
Recommended excavator size- 13-15tonne
