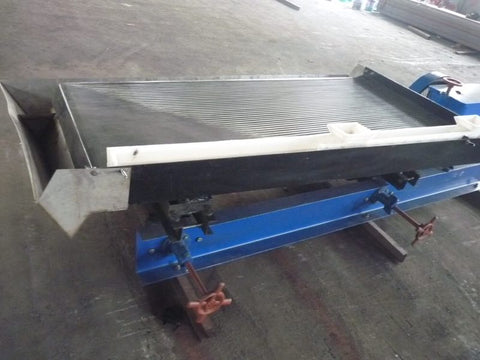

Gold Shaker Table 2100
Deck size: 2100mm×1050mm
Capacity 0.2-0.5 T/Hr
The beneficiation process of shaking table is finished on the tilting deck with grooves. The minerals, feeding from the ore feeding port, are separated according to the different specific gravity and particle sizes under the comprehensive action of the minerals’ specific gravity, the impulsive force of the horizontal water flow which is fed from the water feeding port, as well as the inertia force and frictional force generated by the asymmetric reciprocating movement of the deck. As a result, the mineral particles with different specific gravity and particle size move down along their own direction and form a fan shape gradually, and then finally are discharged as concentrates, middlings, and tailing.
